Piezo Hemispheres

Awesome Image
Awesome Image

HEMISPHERES
OD (mm) Wall thk (mm)
70.00 3.00
60.80 3.00
35.00 3.00
30.00 3.00
24.50 1.50
22.00 2.20
15.00 1.50

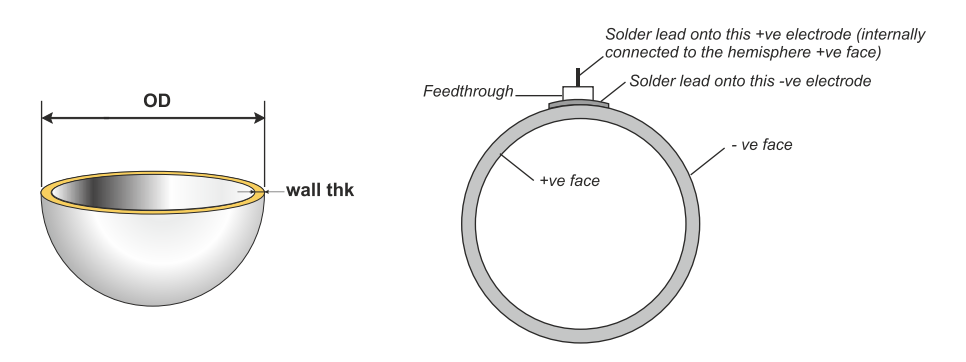

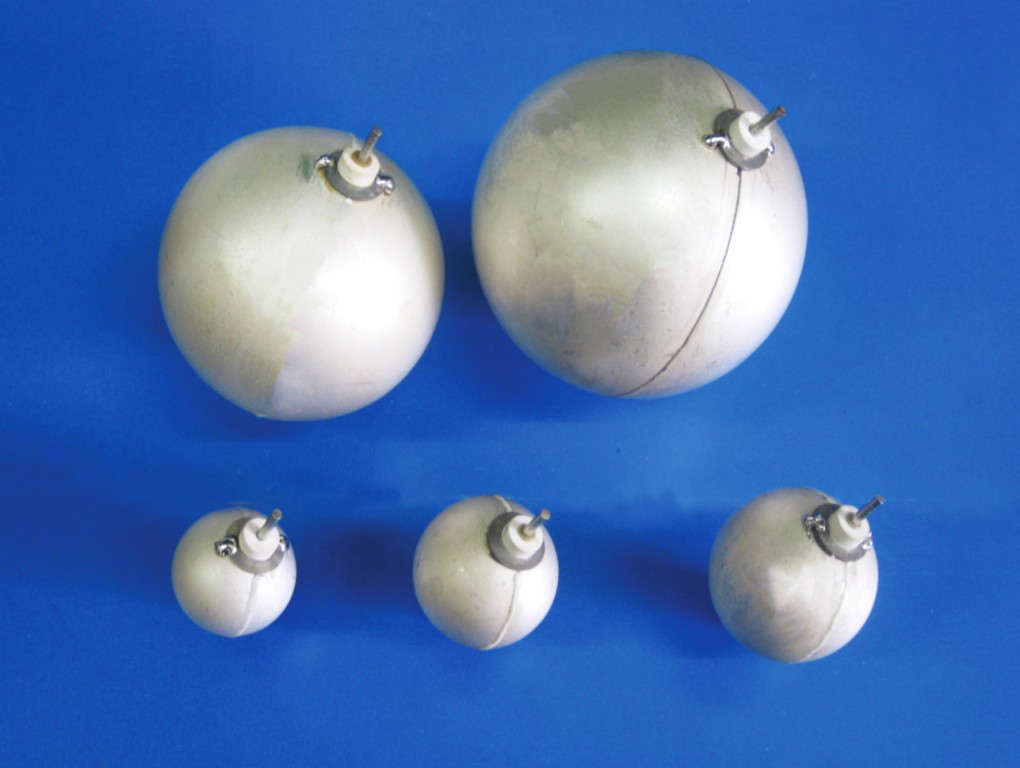

Construction of Spheres :

Sphere constructed out of two hemispheres, with feedthrough attached as shown above.

Tolerances

OD : +/- 2.5% or +/-0.2mm whichever is more
Wall thk : +/- 0.1
Material Grades: SP-4, SP-8, SP-5A, SP-5J, SP-5H othere sizes on request
